Changing from bort to localhost, bort.caret.local makes no difference. They all connect and all get the same 500 internal server error from the Jboss lams server.
Here is a ethereal TCP level dump of the traffic

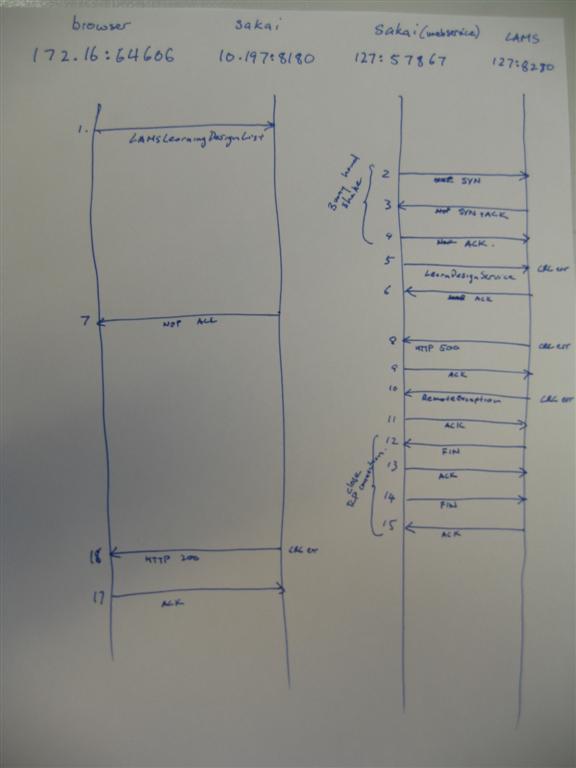

The important frames are
Frame 1: The browser doing an Ajax Call to the sakai server (btw this doesnt work at all in some browsers)
Frame 2: Sakai contacting Lams
Frame 5: Sakai doing a SOAP post to Lams
Frame 8: Lams responding with Status 500 to sakai
Frame 10: SOAP Fault code from Lams to Saka (continuation of 8)
Frame 16: Sakai response 200 to browser
It looks like everything is ok as far as the communication is concerned, but the authentication is just not happening.
What Have I got wrong ?
If I am going to fix this myself I am *going* to have to build the lams-jboss server from source.
No. Time Source Destination Protocol Info
1 0.000000 172.16.1.1 10.0.0.197 HTTP GET /sakai-lams-tool/servlet/LamsLearningDesignListServlet?1133343804090 HTTP/1.1
Frame 1 (520 bytes on wire, 520 bytes captured)
Linux cooked capture
Internet Protocol, Src: 172.16.1.1 (172.16.1.1), Dst: 10.0.0.197 (10.0.0.197)
Transmission Control Protocol, Src Port: 64606 (64606), Dst Port: 8180 (8180), Seq: 0, Ack: 0, Len: 452
Source port: 64606 (64606)
Destination port: 8180 (8180)
Sequence number: 0 (relative sequence number)
Next sequence number: 452 (relative sequence number)
Acknowledgement number: 0 (relative ack number)
Header length: 32 bytes
Flags: 0x0018 (PSH, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 1... = Push: Set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 65535
Checksum: 0xc17c [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2774216953, tsecr 2447799749
Hypertext Transfer Protocol
GET /sakai-lams-tool/servlet/LamsLearningDesignListServlet?1133343804090 HTTP/1.1\r\n
Host: bort:8180\r\n
Connection: keep-alive\r\n
Referer: http://bort:8180/portal/tool/cb78d57e-e72d-43e0-80fd-0999d254c17e/main\r\n
User-Agent: Mozilla/5.0 (Macintosh; U; PPC Mac OS X; en) AppleWebKit/312.5.1 (KHTML, like Gecko) Safari/312.3.1\r\n
Accept: */*\r\n
Accept-Encoding: gzip, deflate\r\n
Accept-Language: en\r\n
Cookie: JSESSIONID=80de5675-05b8-489e-0068-7b806fea4ab4.camtools\r\n
\r\n
No. Time Source Destination Protocol Info
2 0.000125 127.0.0.1 127.0.0.1 TCP 57867 > 8280 [SYN] Seq=0 Ack=0 Win=32767 Len=0 MSS=16396 TSV=2447801411 TSER=0 WS=2
Frame 2 (76 bytes on wire, 76 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 0, Ack: 0, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 0 (relative sequence number)
Header length: 40 bytes
Flags: 0x0002 (SYN)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...0 .... = Acknowledgment: Not set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..1. = Syn: Set
.... ...0 = Fin: Not set
Window size: 32767
Checksum: 0x26ae [correct]
Options: (20 bytes)
Maximum segment size: 16396 bytes
SACK permitted
Time stamp: tsval 2447801411, tsecr 0
NOP
Window scale: 2 (multiply by 4)
No. Time Source Destination Protocol Info
3 0.000211 127.0.0.1 127.0.0.1 TCP 8280 > 57867 [SYN, ACK] Seq=0 Ack=1 Win=32767 Len=0 MSS=16396 TSV=2447801411 TSER=2447801411 WS=2
Frame 3 (76 bytes on wire, 76 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 0, Ack: 1, Len: 0
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 0 (relative sequence number)
Acknowledgement number: 1 (relative ack number)
Header length: 40 bytes
Flags: 0x0012 (SYN, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..1. = Syn: Set
.... ...0 = Fin: Not set
Window size: 32767
Checksum: 0x7804 [correct]
Options: (20 bytes)
Maximum segment size: 16396 bytes
SACK permitted
Time stamp: tsval 2447801411, tsecr 2447801411
NOP
Window scale: 2 (multiply by 4)
SEQ/ACK analysis
This is an ACK to the segment in frame: 2
The RTT to ACK the segment was: 0.000086000 seconds
No. Time Source Destination Protocol Info
4 0.000298 127.0.0.1 127.0.0.1 TCP 57867 > 8280 [ACK] Seq=1 Ack=1 Win=32768 Len=0 TSV=2447801411 TSER=2447801411
Frame 4 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1, Ack: 1, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1 (relative sequence number)
Acknowledgement number: 1 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x4123 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447801411, tsecr 2447801411
SEQ/ACK analysis
This is an ACK to the segment in frame: 3
The RTT to ACK the segment was: 0.000087000 seconds
No. Time Source Destination Protocol Info
5 0.000387 127.0.0.1 127.0.0.1 HTTP POST /lams/services/LearningDesignService HTTP/1.0
Frame 5 (1258 bytes on wire, 1258 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1, Ack: 1, Len: 1190
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1 (relative sequence number)
Next sequence number: 1191 (relative sequence number)
Acknowledgement number: 1 (relative ack number)
Header length: 32 bytes
Flags: 0x0018 (PSH, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 1... = Push: Set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x02cf [incorrect, should be 0xd363]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447801414, tsecr 2447801411
Hypertext Transfer Protocol
POST /lams/services/LearningDesignService HTTP/1.0\r\n
Content-Type: text/xml; charset=utf-8\r\n
Accept: application/soap+xml, application/dime, multipart/related, text/*\r\n
User-Agent: Axis/1.3\r\n
Host: localhost:8280\r\n
Cache-Control: no-cache\r\n
Pragma: no-cache\r\n
SOAPAction: ""\r\n
Content-Length: 898\r\n
\r\n
eXtensible Markup Language
<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<soapenv:Body>
<ns1:getAllLearningDesigns soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:ns1="urn:lamsws">
<serverId xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
sakaicamtools
</serverId>
<datetime xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
1133343588745
</datetime>
<hashValue xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
ceec19f3e0367001ea8659665aa7db5d26800d0b
</hashValue>
<username xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
admin
</username>
</ns1:getAllLearningDesigns>
</soapenv:Body>
</soapenv:Envelope>
No. Time Source Destination Protocol Info
6 0.000472 127.0.0.1 127.0.0.1 TCP 8280 > 57867 [ACK] Seq=1 Ack=1191 Win=32768 Len=0 TSV=2447801414 TSER=2447801414
Frame 6 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 1, Ack: 1191, Len: 0
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 1 (relative sequence number)
Acknowledgement number: 1191 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x3c77 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447801414, tsecr 2447801414
SEQ/ACK analysis
This is an ACK to the segment in frame: 5
The RTT to ACK the segment was: 0.000085000 seconds
No. Time Source Destination Protocol Info
7 0.000518 10.0.0.197 172.16.1.1 TCP 8180 > 64606 [ACK] Seq=0 Ack=452 Win=2252 Len=0 TSV=2447801415 TSER=2774216953
Frame 7 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 10.0.0.197 (10.0.0.197), Dst: 172.16.1.1 (172.16.1.1)
Transmission Control Protocol, Src Port: 8180 (8180), Dst Port: 64606 (64606), Seq: 0, Ack: 452, Len: 0
Source port: 8180 (8180)
Destination port: 64606 (64606)
Sequence number: 0 (relative sequence number)
Acknowledgement number: 452 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 2252
Checksum: 0x67df [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447801415, tsecr 2774216953
SEQ/ACK analysis
This is an ACK to the segment in frame: 1
The RTT to ACK the segment was: 0.000518000 seconds
No. Time Source Destination Protocol Info
8 0.742272 127.0.0.1 127.0.0.1 HTTP HTTP/1.1 500 Internal Server Error
Frame 8 (228 bytes on wire, 228 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 1, Ack: 1191, Len: 160
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 1 (relative sequence number)
Next sequence number: 161 (relative sequence number)
Acknowledgement number: 1191 (relative ack number)
Header length: 32 bytes
Flags: 0x0018 (PSH, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 1... = Push: Set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0xfec8 [incorrect, should be 0x428c]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802575, tsecr 2447801414
Hypertext Transfer Protocol
HTTP/1.1 500 Internal Server Error\r\n
Content-Type: text/xml; charset=utf-8\r\n
Date: Wed, 30 Nov 2005 09:39:49 GMT\r\n
Server: Apache Coyote/1.0\r\n
Connection: close\r\n
\r\n
Frame 9 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1191, Ack: 161, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1191 (relative sequence number)
Acknowledgement number: 161 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x32c5 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802575, tsecr 2447802575
SEQ/ACK analysis
This is an ACK to the segment in frame: 8
The RTT to ACK the segment was: 0.000052000 seconds
No. Time Source Destination Protocol Info
10 0.742467 127.0.0.1 127.0.0.1 HTTP Continuation or non-HTTP traffic
Frame 10 (677 bytes on wire, 677 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 161, Ack: 1191, Len: 609
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 161 (relative sequence number)
Next sequence number: 770 (relative sequence number)
Acknowledgement number: 1191 (relative ack number)
Header length: 32 bytes
Flags: 0x0018 (PSH, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 1... = Push: Set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x008a [incorrect, should be 0xabb5]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802576, tsecr 2447802575
Hypertext Transfer Protocol
Data (609 bytes)
0000 3c 3f 78 6d 6c 20 76 65 72 73 69 6f 6e 3d 22 31 <?xml version="1
0010 2e 30 22 20 65 6e 63 6f 64 69 6e 67 3d 22 75 74 .0" encoding="ut
0020 66 2d 38 22 3f 3e 3c 73 6f 61 70 65 6e 76 3a 45 f-8"?><soapenv:E
0030 6e 76 65 6c 6f 70 65 20 78 6d 6c 6e 73 3a 73 6f nvelope xmlns:so
0040 61 70 65 6e 76 3d 22 68 74 74 70 3a 2f 2f 73 63 apenv="http://sc
0050 68 65 6d 61 73 2e 78 6d 6c 73 6f 61 70 2e 6f 72 hemas.xmlsoap.or
0060 67 2f 73 6f 61 70 2f 65 6e 76 65 6c 6f 70 65 2f g/soap/envelope/
0070 22 20 78 6d 6c 6e 73 3a 78 73 64 3d 22 68 74 74 " xmlns:xsd="htt
0080 70 3a 2f 2f 77 77 77 2e 77 33 2e 6f 72 67 2f 32 p://www.w3.org/2
0090 30 30 31 2f 58 4d 4c 53 63 68 65 6d 61 22 20 78 001/XMLSchema" x
00a0 6d 6c 6e 73 3a 78 73 69 3d 22 68 74 74 70 3a 2f mlns:xsi="http:/
00b0 2f 77 77 77 2e 77 33 2e 6f 72 67 2f 32 30 30 31 /www.w3.org/2001
00c0 2f 58 4d 4c 53 63 68 65 6d 61 2d 69 6e 73 74 61 /XMLSchema-insta
00d0 6e 63 65 22 3e 3c 73 6f 61 70 65 6e 76 3a 42 6f nce"><soapenv:Bo
00e0 64 79 3e 3c 73 6f 61 70 65 6e 76 3a 46 61 75 6c dy><soapenv:Faul
00f0 74 3e 3c 66 61 75 6c 74 63 6f 64 65 3e 73 6f 61 t><faultcode>soa
0100 70 65 6e 76 3a 53 65 72 76 65 72 2e 75 73 65 72 penv:Server.user
0110 45 78 63 65 70 74 69 6f 6e 3c 2f 66 61 75 6c 74 Exception</fault
0120 63 6f 64 65 3e 3c 66 61 75 6c 74 73 74 72 69 6e code><faultstrin
0130 67 3e 6a 61 76 61 2e 72 6d 69 2e 52 65 6d 6f 74 g>java.rmi.Remot
0140 65 45 78 63 65 70 74 69 6f 6e 3a 20 41 75 74 68 eException: Auth
0150 65 6e 74 69 63 61 74 69 6f 6e 20 66 61 69 6c 65 entication faile
0160 64 21 3b 20 6e 65 73 74 65 64 20 65 78 63 65 70 d!; nested excep
0170 74 69 6f 6e 20 69 73 3a 20 0a 09 6f 72 67 2e 6c tion is: ..org.l
0180 61 6d 73 66 6f 75 6e 64 61 74 69 6f 6e 2e 6c 64 amsfoundation.ld
0190 2e 73 65 63 75 72 69 74 79 2e 41 75 74 68 65 6e .security.Authen
01a0 74 69 63 61 74 65 45 78 63 65 70 74 69 6f 6e 3a ticateException:
01b0 20 41 75 74 68 65 6e 74 69 63 61 74 69 6f 6e 20 Authentication
01c0 66 61 69 6c 65 64 21 3c 2f 66 61 75 6c 74 73 74 failed!</faultst
01d0 72 69 6e 67 3e 3c 64 65 74 61 69 6c 3e 3c 6e 73 ring><detail><ns
01e0 31 3a 68 6f 73 74 6e 61 6d 65 20 78 6d 6c 6e 73 1:hostname xmlns
01f0 3a 6e 73 31 3d 22 68 74 74 70 3a 2f 2f 78 6d 6c :ns1="http://xml
0200 2e 61 70 61 63 68 65 2e 6f 72 67 2f 61 78 69 73 .apache.org/axis
0210 2f 22 3e 62 6f 72 74 3c 2f 6e 73 31 3a 68 6f 73 /">bort</ns1:hos
0220 74 6e 61 6d 65 3e 3c 2f 64 65 74 61 69 6c 3e 3c tname></detail><
0230 2f 73 6f 61 70 65 6e 76 3a 46 61 75 6c 74 3e 3c /soapenv:Fault><
0240 2f 73 6f 61 70 65 6e 76 3a 42 6f 64 79 3e 3c 2f /soapenv:Body></
0250 73 6f 61 70 65 6e 76 3a 45 6e 76 65 6c 6f 70 65 soapenv:Envelope
0260 3e >
No. Time Source Destination Protocol Info
11 0.742492 127.0.0.1 127.0.0.1 TCP 57867 > 8280 [ACK] Seq=1191 Ack=770 Win=32768 Len=0 TSV=2447802576 TSER=2447802576
Frame 11 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1191, Ack: 770, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1191 (relative sequence number)
Acknowledgement number: 770 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x3062 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802576, tsecr 2447802576
SEQ/ACK analysis
This is an ACK to the segment in frame: 10
The RTT to ACK the segment was: 0.000025000 seconds
No. Time Source Destination Protocol Info
12 0.757715 127.0.0.1 127.0.0.1 TCP 8280 > 57867 [FIN, ACK] Seq=770 Ack=1191 Win=32768 Len=0 TSV=2447802591 TSER=2447802576
Frame 12 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 770, Ack: 1191, Len: 0
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 770 (relative sequence number)
Acknowledgement number: 1191 (relative ack number)
Header length: 32 bytes
Flags: 0x0011 (FIN, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...1 = Fin: Set
Window size: 32768 (scaled)
Checksum: 0x3052 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802591, tsecr 2447802576
No. Time Source Destination Protocol Info
13 0.797821 127.0.0.1 127.0.0.1 TCP 57867 > 8280 [ACK] Seq=1191 Ack=771 Win=32768 Len=0 TSV=2447802631 TSER=2447802591
Frame 13 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1191, Ack: 771, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1191 (relative sequence number)
Acknowledgement number: 771 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x301b [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802631, tsecr 2447802591
SEQ/ACK analysis
This is an ACK to the segment in frame: 12
The RTT to ACK the segment was: 0.040106000 seconds
No. Time Source Destination Protocol Info
14 0.864615 127.0.0.1 127.0.0.1 TCP 57867 > 8280 [FIN, ACK] Seq=1191 Ack=771 Win=32768 Len=0 TSV=2447802698 TSER=2447802591
Frame 14 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 57867 (57867), Dst Port: 8280 (8280), Seq: 1191, Ack: 771, Len: 0
Source port: 57867 (57867)
Destination port: 8280 (8280)
Sequence number: 1191 (relative sequence number)
Acknowledgement number: 771 (relative ack number)
Header length: 32 bytes
Flags: 0x0011 (FIN, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...1 = Fin: Set
Window size: 32768 (scaled)
Checksum: 0x2fd7 [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802698, tsecr 2447802591
No. Time Source Destination Protocol Info
15 0.864664 127.0.0.1 127.0.0.1 TCP 8280 > 57867 [ACK] Seq=771 Ack=1192 Win=32768 Len=0 TSV=2447802698 TSER=2447802698
Frame 15 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 127.0.0.1 (127.0.0.1), Dst: 127.0.0.1 (127.0.0.1)
Transmission Control Protocol, Src Port: 8280 (8280), Dst Port: 57867 (57867), Seq: 771, Ack: 1192, Len: 0
Source port: 8280 (8280)
Destination port: 57867 (57867)
Sequence number: 771 (relative sequence number)
Acknowledgement number: 1192 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 32768 (scaled)
Checksum: 0x2f6c [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802698, tsecr 2447802698
SEQ/ACK analysis
This is an ACK to the segment in frame: 14
The RTT to ACK the segment was: 0.000049000 seconds
No. Time Source Destination Protocol Info
16 0.870148 10.0.0.197 172.16.1.1 HTTP HTTP/1.1 200 OK
Frame 16 (248 bytes on wire, 248 bytes captured)
Linux cooked capture
Internet Protocol, Src: 10.0.0.197 (10.0.0.197), Dst: 172.16.1.1 (172.16.1.1)
Transmission Control Protocol, Src Port: 8180 (8180), Dst Port: 64606 (64606), Seq: 0, Ack: 452, Len: 180
Source port: 8180 (8180)
Destination port: 64606 (64606)
Sequence number: 0 (relative sequence number)
Next sequence number: 180 (relative sequence number)
Acknowledgement number: 452 (relative ack number)
Header length: 32 bytes
Flags: 0x0018 (PSH, ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 1... = Push: Set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 2252
Checksum: 0xb8b0 [incorrect, should be 0x5f90]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2447802703, tsecr 2774216953
Hypertext Transfer Protocol
HTTP/1.1 200 OK\r\n
Server: Apache-Coyote/1.1\r\n
Set-Cookie: JSESSIONID=80de5675-05b8-489e-0068-7b806fea4ab4.camtools; Path=/\r\n
Content-Length: 0\r\n
Date: Wed, 30 Nov 2005 09:39:50 GMT\r\n
\r\n
Frame 17 (68 bytes on wire, 68 bytes captured)
Linux cooked capture
Internet Protocol, Src: 172.16.1.1 (172.16.1.1), Dst: 10.0.0.197 (10.0.0.197)
Transmission Control Protocol, Src Port: 64606 (64606), Dst Port: 8180 (8180), Seq: 452, Ack: 180, Len: 0
Source port: 64606 (64606)
Destination port: 8180 (8180)
Sequence number: 452 (relative sequence number)
Acknowledgement number: 180 (relative ack number)
Header length: 32 bytes
Flags: 0x0010 (ACK)
0... .... = Congestion Window Reduced (CWR): Not set
.0.. .... = ECN-Echo: Not set
..0. .... = Urgent: Not set
...1 .... = Acknowledgment: Set
.... 0... = Push: Not set
.... .0.. = Reset: Not set
.... ..0. = Syn: Not set
.... ...0 = Fin: Not set
Window size: 65535
Checksum: 0x6aec [correct]
Options: (12 bytes)
NOP
NOP
Time stamp: tsval 2774216956, tsecr 2447802703
SEQ/ACK analysis
This is an ACK to the segment in frame: 16
The RTT to ACK the segment was: 0.226718000 seconds
Posted by Ian Boston
