Can you paste the value of lams configuration in your sakai.properties and values of ext_server_org_map in the lams database?

Cheers
Anthony

Posted by Anthony Xiao

By: Ian Boston

[ Reply | Forward ]

All is running on the same box called bort

mysql> select * from ext_server_org_map;+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
| sid | serverid | serverkey | servername | serverdesc | prefix | userinfo_url | timeout_url | disabled | orgid |
+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
| 1 | sakaicamtools | LAMSSERVERKEY | sakai | sakai | sakai | http://bort:8180/sakai-lams-plugin/servlet/UserDataServlet?uid=%username%&ts=%timestamp%&hash=%hash% | 300 | 0 | 0 |
+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
1 row in set (0.06 sec)

mysql>

in sakai/sakai.properties

lams.serverId = sakaicamtools
lams.serverKey = LAMSSERVERKEY
lams.serverAddr = http://bort:8280/

Posted by Ian Boston

By: Anthony Xiao

[ Reply | Forward ]

Try remove the extra slash at the end in lams.serverAddr
ie: lams.serverAddr = http://bort:8280

Posted by Anthony Xiao

By: Ian Boston

[ Reply | Forward ]

I think I go ordid wrong,

The doc says get it from the user interface when you add it, but I cant find it anywhere on the user interface.....


am I supposed to dig about the db ?

Posted by Ian Boston

By: Jun-Dir Liew

[ Reply | Forward ]

To get the orgid, see the steps 1-3 at the bottom of post #8 here: http://www.lamscommunity.org/dotlrn/clubs/technicalcommunity/forums/message-view?message%5fid=98924#104867

Posted by Jun-Dir Liew

By: Ian Boston

[ Reply | Forward ]

mysql> select * from ext_server_org_map;
+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
| sid | serverid | serverkey | servername | serverdesc | prefix | userinfo_url | timeout_url | disabled | orgid |
+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
| 1 | sakaicamtools | LAMSSERVERKEY | sakai | sakai | sakai | http://bort:8180/sakai-lams-plugin/servlet/UserDataServlet?uid=%username%&ts=%timestamp%&hash=%hash% | 300 | 0 | 1020 |
+-----+---------------+---------------+------------+------------+--------+------------------------------------------------------------------------------------------------------+-------------+----------+-------+
1 row in set (0.00 sec)

mysql> select * from u_organisation;
+------+-------------------+-------------------------------------------------------------------------------------------------------------------------------------------+----------------+----------------------+---------+
| sid | name | description | parent_org_sid | account_organisation | visible |
+------+-------------------+-------------------------------------------------------------------------------------------------------------------------------------------+----------------+----------------------+---------+
| 1 | All Organisations | This is the root organisation of the home organisation hierarchy. Anyone who really can't belong anywhere else (e.g. admin) belongs here. | NULL | 1 | 1 |
| 2 | Demo Org | Organization for Demonstration | 1 | 1 | 1 |
| 3 | DemoClass | Session Class for Demonstration | NULL | 0 | 1 |
| 1020 | sakaicamtools | Sakai Camtools Test on Bort | NULL | 1 | 1 |



But this still fails.... I have restarted jboss and sakai tomcat just to make certain nothing was cached.

Posted by Ian Boston

By: Anthony Xiao

[ Reply | Forward ]

do you still get the java.rmi.RemoteException or something else?

Posted by Anthony Xiao

By: Ian Boston

[ Reply | Forward ]

There are no exceptions anywhere in any of the jboss logs.


If i turn on DEBUG for com.webmcq.ld I get one line in lams.log

2005-11-30 00:20:08,830 [Thread-11] DEBUG com.webmcq.ld.ws.LearningDesignServiceSoapBindingImpl - org.lamsfoundation.ld.security.AuthenticateException: Authentication failed!

Havent tried TRACE yet, does it emit any more debug ? like the url or any of the soap messages

Im doing this over a VPN from home (00:30 at the moment) so debugging the IP level with ethereal is not on at the moment.

Posted by Ian Boston

By: Jun-Dir Liew

[ Reply | Forward ]

Also, you might want to change your serverid/key now that it's been posted ;)

Posted by Jun-Dir Liew

By: Ian Boston

[ Reply | Forward ]

Dont worry, this is a test install behind a firewall, nothing exposed.

Posted by Ian Boston

By: Ian Boston

[ Reply | Forward ]

Also Im finding Windows folders being created in the lams jboss folders

eg

D:\jboss-3.0.8_tomcat-4.1.24\server\default\deploy\lams.war\WEB-INF\attachments

has been put in the base directroy where lams home and the jboss folder are. This is where I started the jboss process from.

---- But dont worry about this for the moment,

Posted by Ian Boston

By: Ian Boston

[ Reply | Forward ]

I am also getting

10.0.0.197 - - [30/Nov/2005:00:02:04 00] "POST //lams/services/LearningDesignService HTTP/1.0" 500 609
10.0.0.197 - - [30/Nov/2005:00:09:05 00] "POST //lams/services/LearningDesignService HTTP/1.0" 500 609
10.0.0.197 - - [30/Nov/2005:00:09:12 00] "POST //lams/services/LearningDesignService HTTP/1.0" 500 609
10.0.0.197 - - [30/Nov/2005:00:09:14 00] "POST //lams/services/LearningDesignService HTTP/1.0" 500 609

In the Jboss access log file.

Looks like the jboss server is seeing a internal server error when Sakai tries get a list of things from it, not certain what it is trying to get.

I havent added anything to the LAMS server other than the organisation mentioned above.

Posted by Ian Boston

By: Ian Boston

[ Reply | Forward ]

TRACE doesnt produce any more information. Even when I turn it on org.apache as well ( I assume that we are using axis in jboss).


Im at a complete loss...

Should I download the source code an manually put debugging statements in ?

Posted by Ian Boston

By: Ian Boston

[ Reply | Forward ]

Sorry no


lams.serverId=sakaicamtools
lams.serverKey=LAMSSERVERKEY
lams.serverAddr=http://bort:8280



removing the tailing / has made no difference.

I have to go to sleep, I will pick this up tomorow, If you can think of anything, please post.

Thanks
Ian

Posted by Ian Boston

By: Jun-Dir Liew

[ Reply | Forward ]

the problem comes from when sakai and LAMS are talking over the webservice. from the log in the first post, LAMS is not authenticating whatever is sent from sakai... the stuff about 'variable "sequence" could not be resolved' is referring to the drop down list of sequences that sakai shows when you click 'create'.

have you tried using 'localhost' or adding the domain name to 'bort' in the configs on both sides?

Posted by Jun-Dir Liew

By: Ian Boston

[ Reply | Forward ]

I will try the local host and the full domain name. But this would only be a problem if either side were doing reverse name resolution since the name bort is resolvable and as you can see from the soap traceback, a soap message did make it into the lams server and a soap fault came back.

I will also put ethereal on the box to see what tcp traffic there is between the 2 servers.

If that fails, I will download all the source code and build with extra debugging. Presumably the lams authentication side is fairly obvious ?

Someone from lams foundation asked if they could have remove access to the machine. Unfortunately this is not possible since its behing a firewall and have a restrictive policy on VPN tokens.

I'll post the outcome here as I find out more.

Posted by Ian Boston

By: Ernie Ghiglione

[ Reply | Forward ]

G'day Ian,

Your ethereal post brought down the LAMS Community! It seems that the email notifications scripts in .LRN couldnt handle some of the characters and kept hanging .LRN.

At any rate, Tony -the our tech fellow that developed the Sakai integration was the one that contact you today to see if we could get access to your servers and figure out what might be going on.

We'll get into your posting tomorrow morning and try to see if we can come up with some ideas on where this might be failing in your end.

Thanks,

Ernie

Posted by Ernie Ghiglione

By: Ian Boston

[ Reply | Forward ]

Ernie,
woops, Im sorry, I didnt mean it to do that, but I couldnt see anywhere obvious to attach the file.

Is the source code avalable for the 1.0.2 lams binary, Im quite happy to investigate the problem and fix it, after all thats what an opensource community is for :)

I cant remember if .LRN cant take inbound email, so I've sent direct as well.

Ian

Posted by Ian Boston

By: Ian Boston

[ Reply | Forward ]

Changing from bort to localhost, bort.caret.local makes no difference. They all connect and all get the same 500 internal server error from the Jboss lams server.

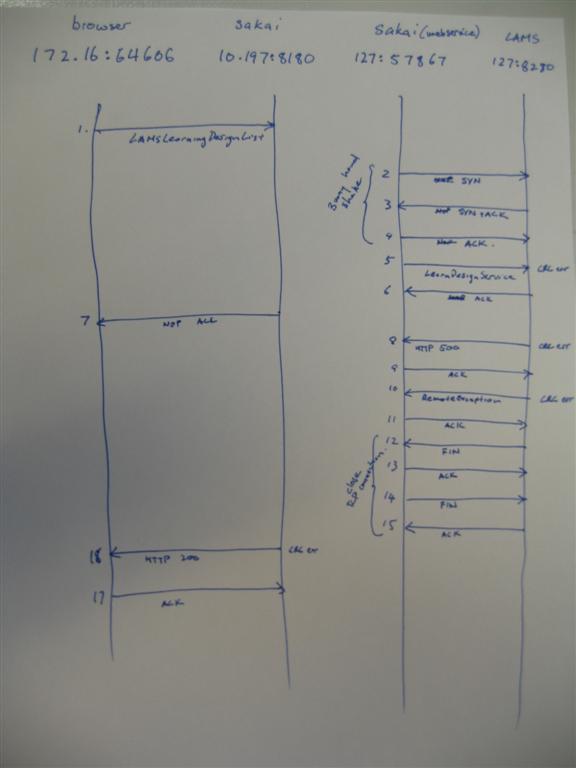

Here is a ethereal TCP level dump of the traffic
The important frames are

Frame 1: The browser doing an Ajax Call to the sakai server (btw this doesnt work at all in some browsers)

Frame 2: Sakai contacting Lams
Frame 5: Sakai doing a SOAP post to Lams
Frame 8: Lams responding with Status 500 to sakai
Frame 10: SOAP Fault code from Lams  to Saka (continuation of 8)
Frame 16: Sakai response 200 to browser


It looks like everything is ok as far as the communication is concerned, but the authentication is just not happening.

What Have I got wrong ?

If I am going to fix this myself I am *going* to have to build the lams-jboss server from source.
